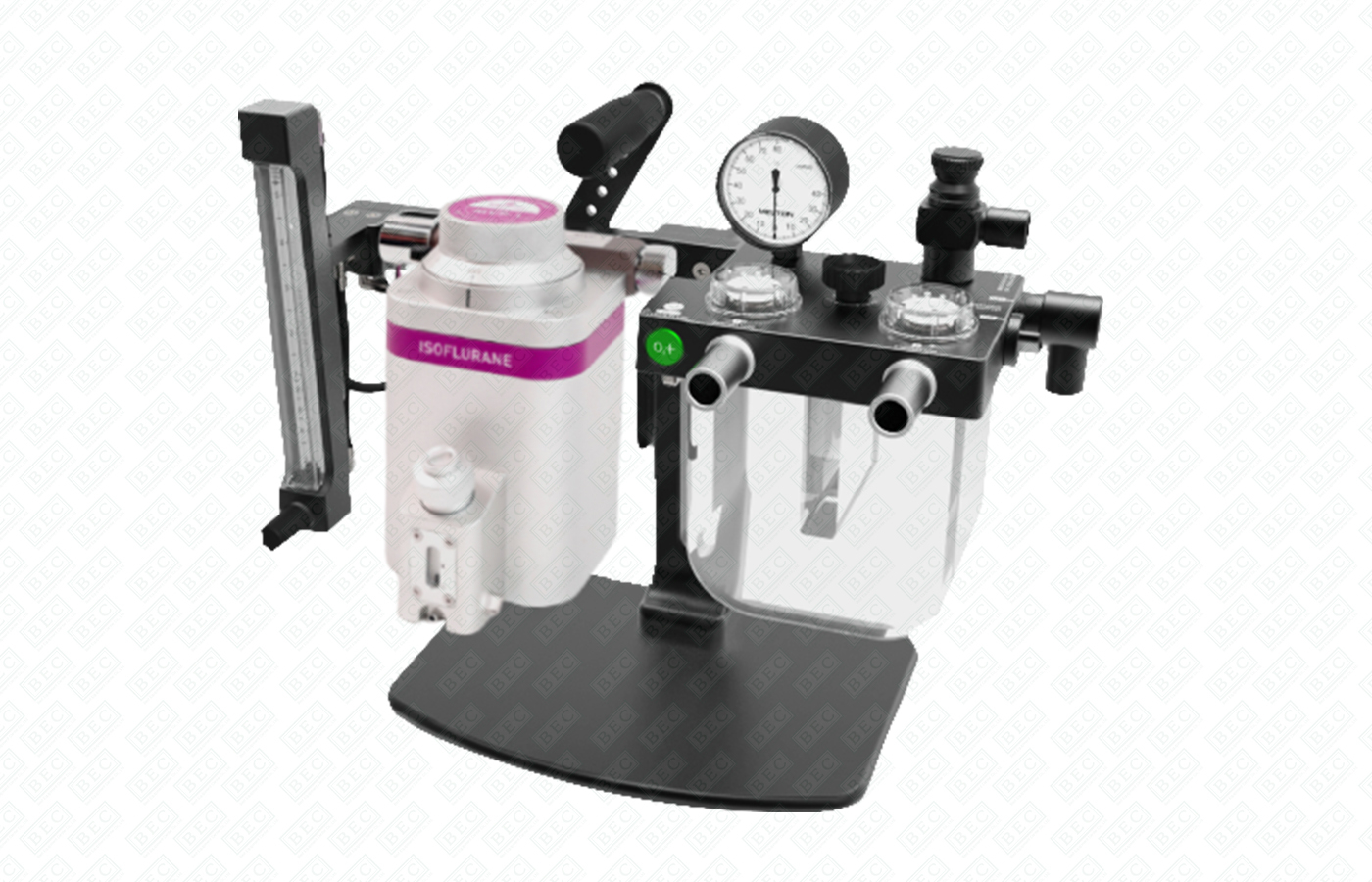

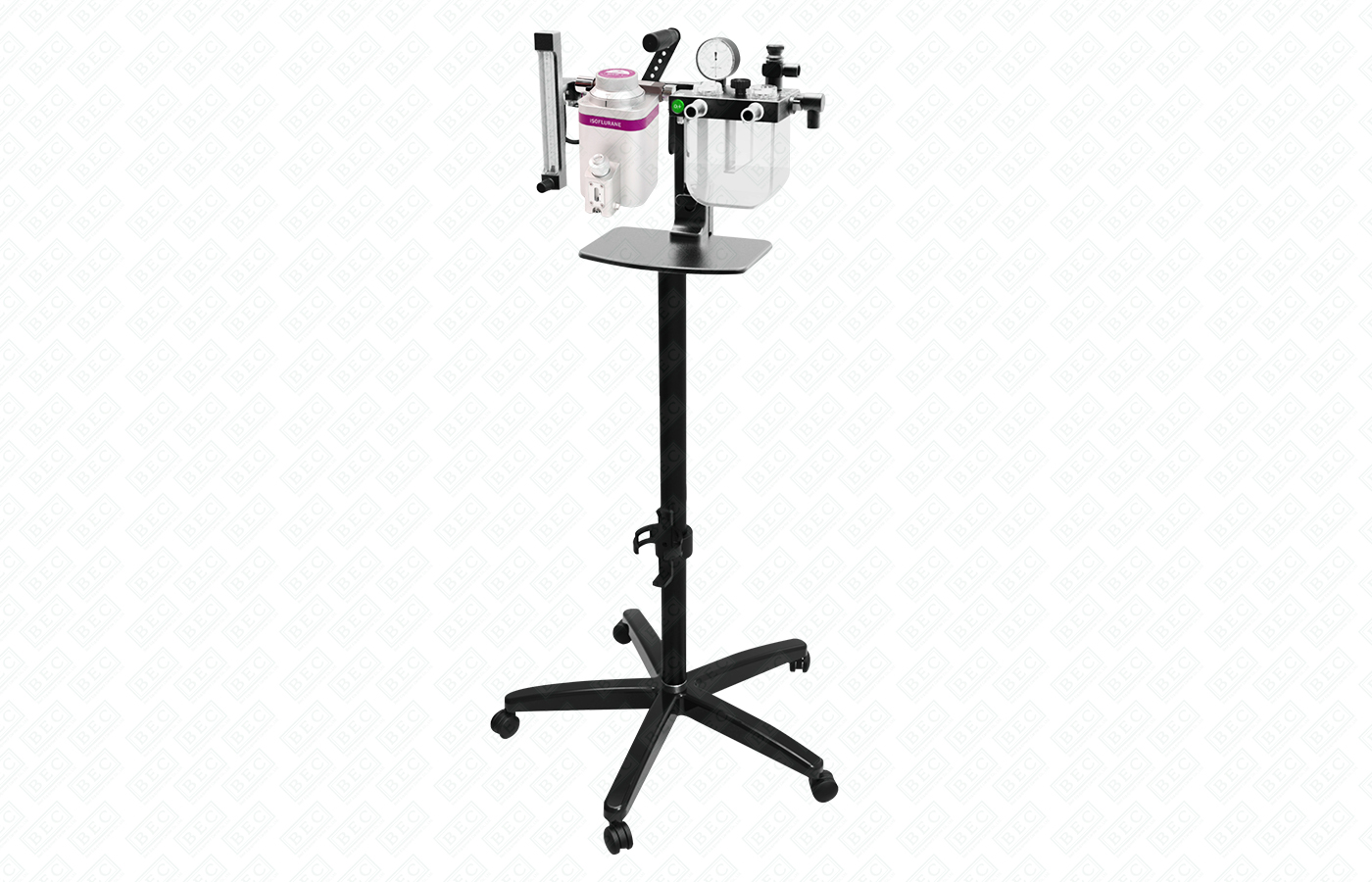

Veterinary Anesthesia Machine,Quick Stand

Benefits

Versatile Breathing Circuit

Opening or closing the rebreathing circuit by one turn of the knob, convenient to switch between rebreathing and non rebreathing system.

Safe Oxygen Flush

Oxygen flush valve with restricted flow for extra safety of the patients. Integrated with the breathing circuit for easy access and handle.

User Friendly Design

Delivery with a complete assembly, no tools needed for regular maintenance.

Qualified Parts Installed

All parts and materials used in VAM series anesthesia machines are medical or food grade product from qualified global supplie

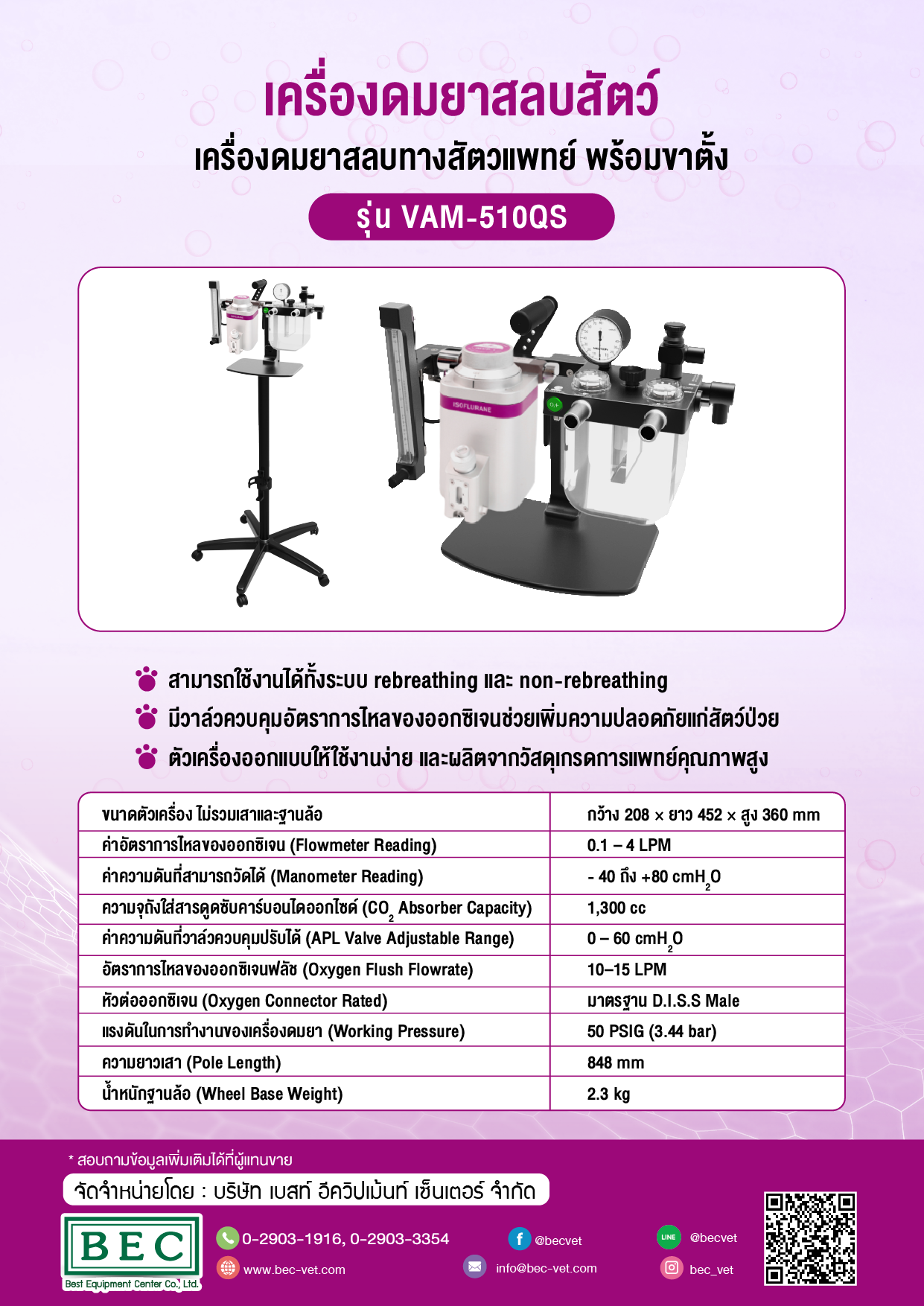

Specifications

Dimension (without pole and wheel base)  452(L)x 208(W) x 360(H) mm

Flowmeter Reading                                   0.1-4LPM

Manometer Reading                                 -40-80 cmH₂O

CO_₂ Absorber Capacity                             1300 cc

APL Valve Adjustable Range                      0-60 cmH₂O

Oxygen Flush Flowrate                              10-15 LPM

Oxygen Connector Rated                          D.I.S.S Male

Working Pressure                                     50 PSIG (3.44 bar)

Pole Length                                              848 mm

Wheel Base Weight                                  2.3 kgs
